Description
Monitor Line Voltage and Ensure System Stability

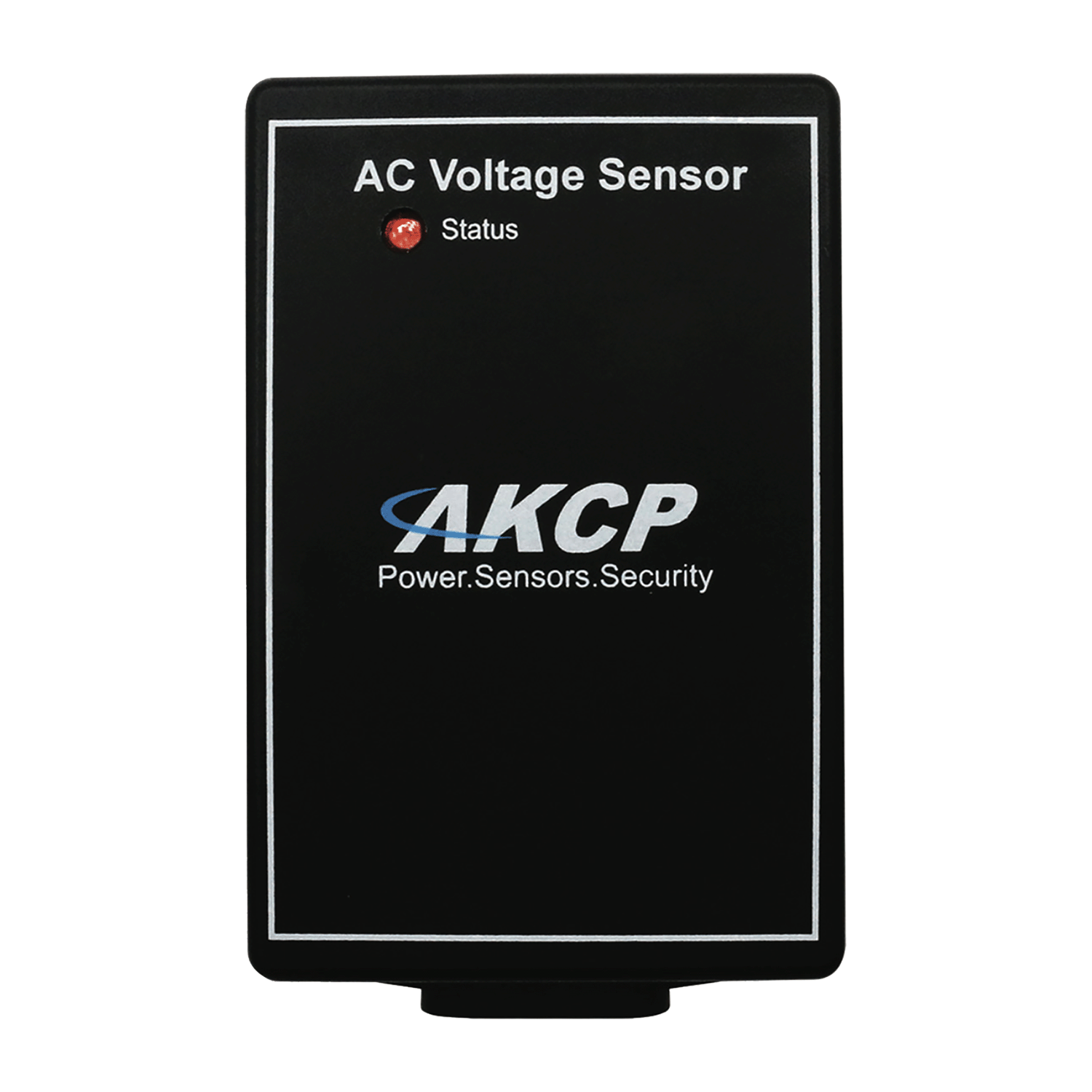

The AC Voltage Sensor is designed to indicate the presence or absence of line voltage, making it an essential tool for monitoring power systems. This sensor is particularly useful for applications like checking whether a UPS is running on battery power, helping you to maintain reliable power supply and quickly identify power issues.
Key Features:
- Voltage Detection – Indicates the presence or absence of line voltage (50–250 VAC), crucial for detecting power disruptions.
- Alarm/Normal Status – Provides both software and LED indications for voltage presence, with SNMP traps sent during critical conditions.
- Flexible Monitoring – Features an SNMP interface for alarm status monitoring and allows SNMP polling to retrieve the current status and configuration.
- Real-Time Alerts – Configurable alerts can be sent via email, page, or traps when an alarm condition is triggered.
- Global Compatibility – Designed to operate worldwide, supporting a wide voltage range.
Specifications:
- Measurement Type: Normal or Alarm (Open/Closed contact input switch).
- Voltage Range: 50 to 250 VAC.
- Measurement Rate: Multiple readings every second.
- Indication: LED for voltage presence.
- Operating Temperature: -20°C to 60°C (4°F to 140°F).
- Communications Cable: RJ-45 to UTP CAT5 cable.
- Maximum Cable Length: 1000 feet (300 meters) from RJ-45 ports on base units.
- Power Source: Powered by the controller unit, no additional power required.
- Power Consumption: Typical 11mW, 2.20mA.
- Dimensions: 110 x 70 x 40 mm.
Ensure uninterrupted power systems and receive immediate notifications with the AKCP AC Voltage Sensor, designed for accurate voltage monitoring and proactive system management.
