Description

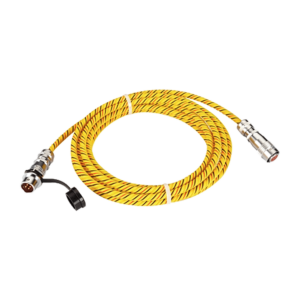

The Locate Rope Water Sensor is designed for accurate identification of water leaks over large areas, such as under raised floors or false ceilings, where leaks may be difficult to detect. By providing precise location identification, this sensor enables prompt responses to potential water damage, helping to protect your enterprise resources.
Key Features:
- Precise Leak Location – Detects the exact location of water leaks along the sensing rope, allowing for quick action.
- Customisable Lengths – Order lengths from 10ft (3m) to 160ft (50m), with increments of 10ft for extended coverage.
- Complete Sensor Kit – Comes fully assembled, including the water-sensing rope, non-sensing cable, and main sensing module.
- Multiple Alerts – Trigger alerts such as e-mail, SMS, phone calls, and SNMP traps based on water detection at specific locations.
- Network Monitoring – Equipped with an SNMP OID, enabling network monitoring with any compatible Network Management System (NMS).
- Ideal for Hidden Areas – Perfect for monitoring hard-to-reach areas like basements, false ceilings, or under raised floors.
Specifications:
- Measurement Type: Wet or Dry, Detects Closest Location of Water
- Measurement Rate: Multiple readings per second
- Indication: LED status for monitoring
- Operating Temperature: -20°C to +60°C (-4°F to +140°F)
- Pull Force Limit: Not to exceed 50 lb
- Bend Radius: Minimum of 2 inches (50mm)
- Pressure: Loads over 20 lb (9 kg) per linear inch at 20°C (68°F) may trigger an alarm
Interface & Power:
- Communications Cable: RJ-45 jack to sensor via UTP Cat 5 wire (extendable up to 100ft/30m with CAT5/6 LAN cable)
- Power Source: Powered by the base unit (no additional power required)
- Power Consumption: Typical 125 mW, 25 mA
- Mounting: DIN rail or screw mounting options
Important Notes:
- Non-Conductive Surface Recommended – Avoid placing the sensor on conductive surfaces.
- Compatibility: Designed to work with AKCP remote monitoring base units via RJ-45 Intelligent Sensor ports.
Protect your enterprise from water damage with the Locate Rope Water Sensor, offering precision, reliability, and full integration with AKCP monitoring systems.
