Description

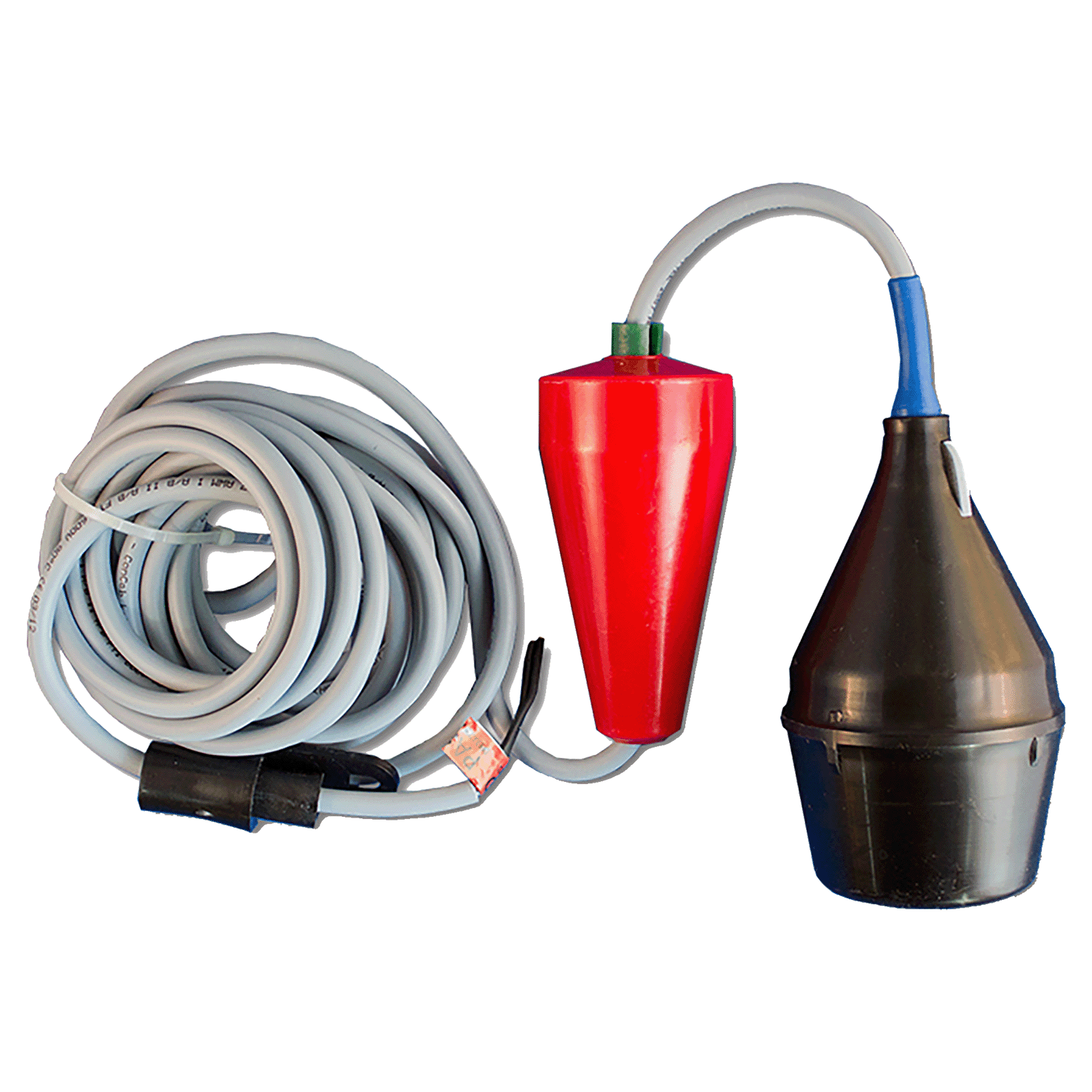

Avtech’s Water Tank Level Sensor monitors the rise and fall of water in a container (i.e. typically a large tank). The float and control weight are composed of
chemically-resistant polypropylene; the 4.9m cable is coated with rugged PVC. Because this sensor uses a dual-point switch and differential height between switch states, you can use just one sensor to monitor two levels… both high and low.
Dimensions of the float switch are 129mm x 76mm and the control weight is 10.2mm x 5.7mm. The 4.9m attached cable with PVC coating has a protection rating of IP67 and NEMA 6. The switch state differential range is a minimum of 254 mm and a maximum of 1.27m. Please see the Installation Note for more information.
There is a Normally Open (NO) and a Normally Closed (NC) version of this sensor.
