Description

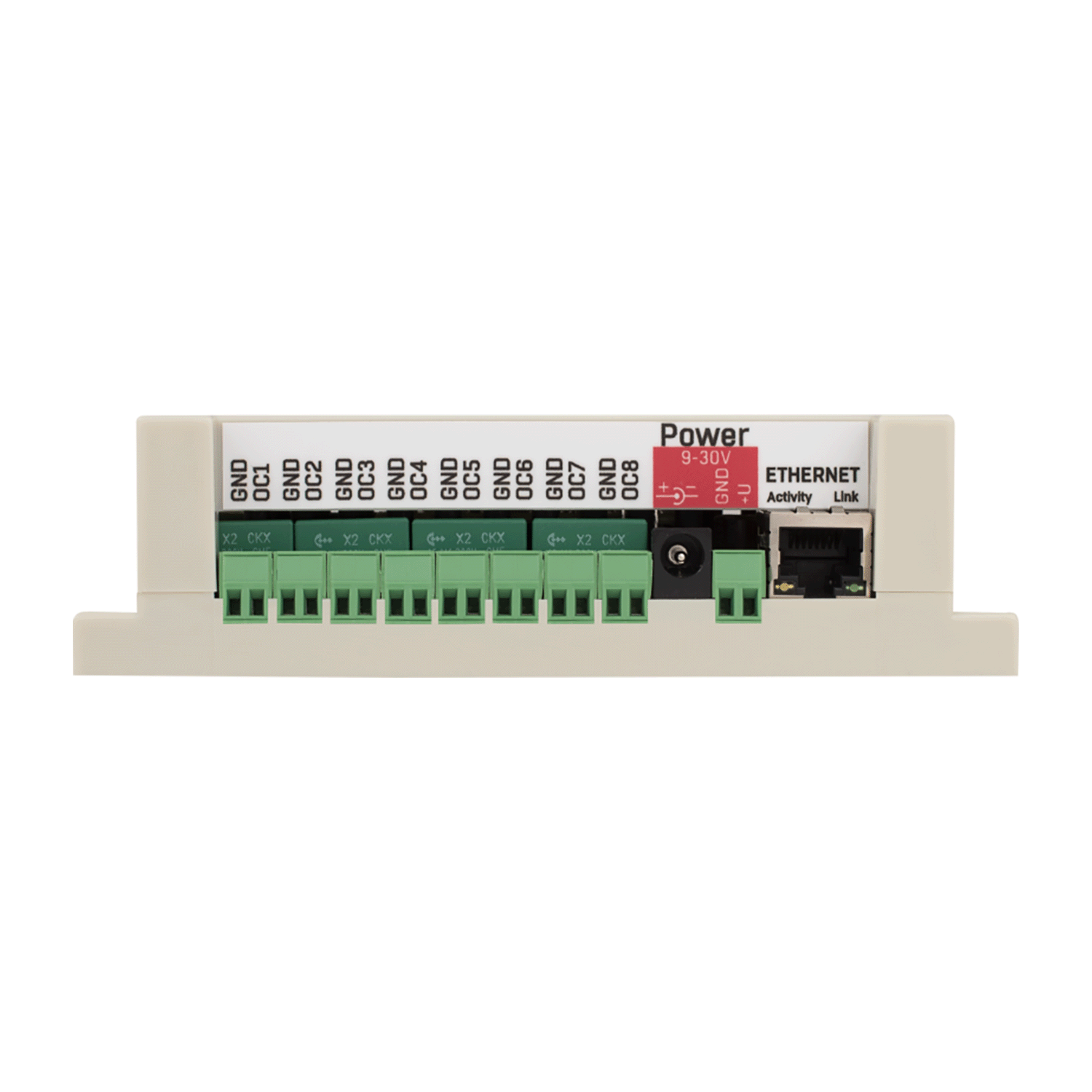

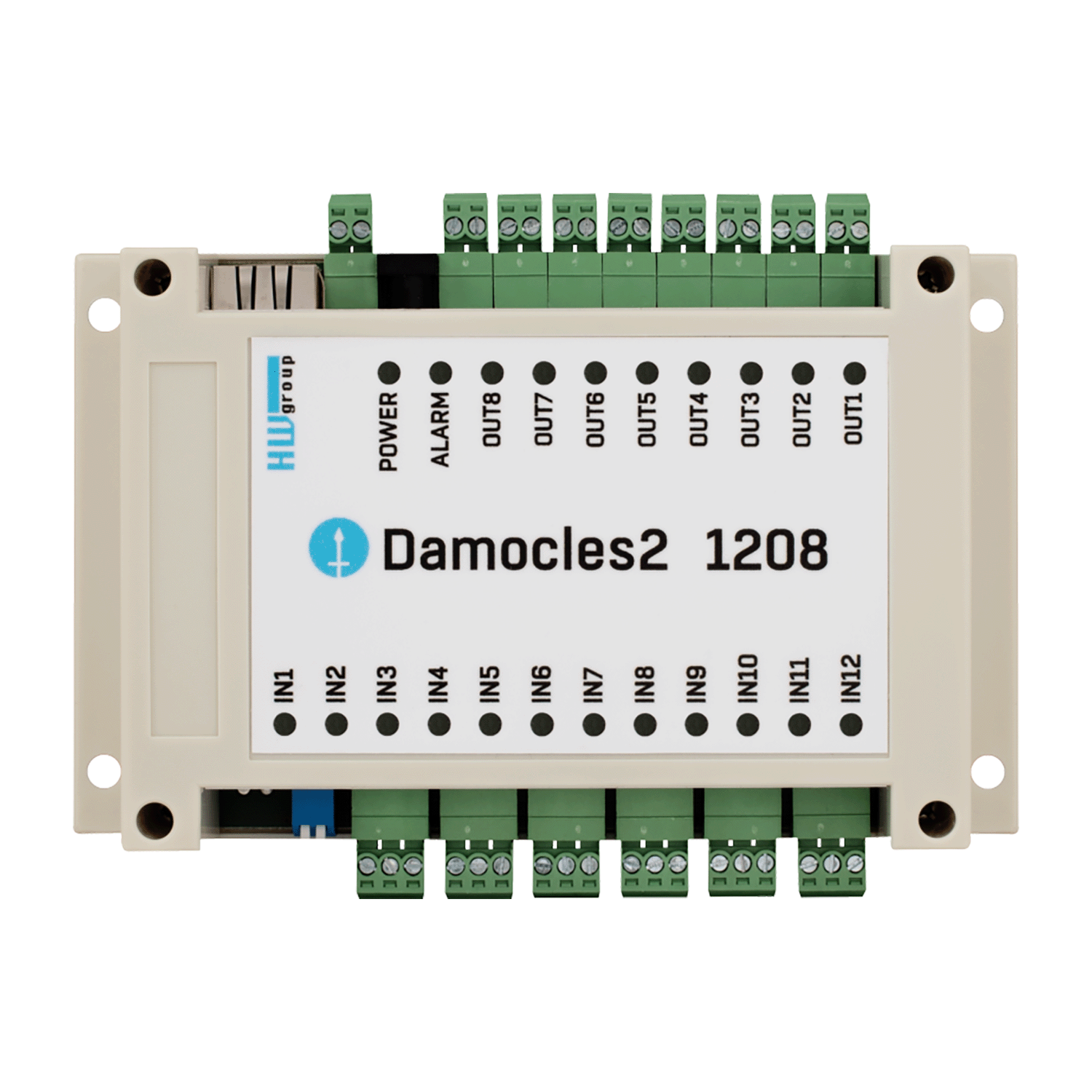

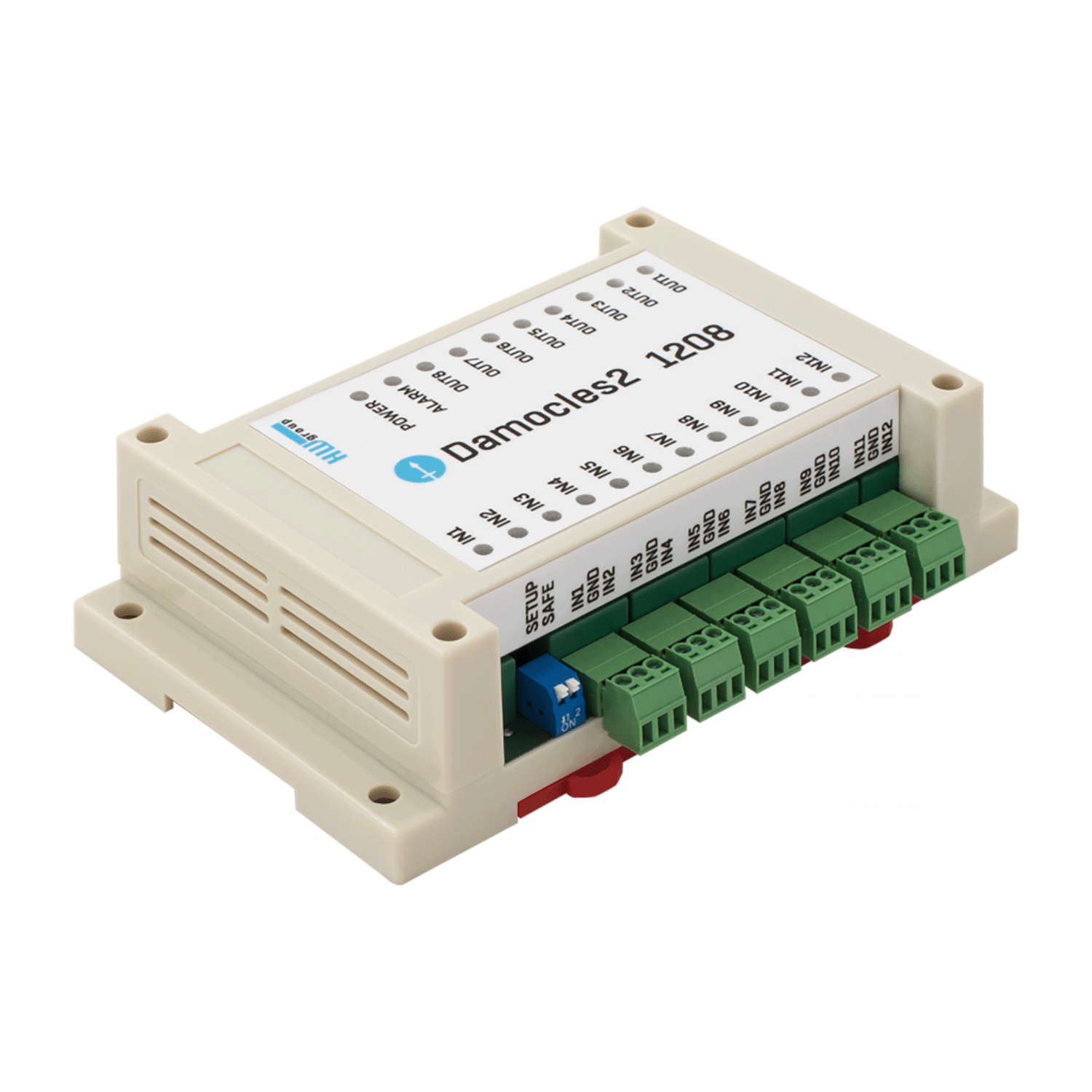

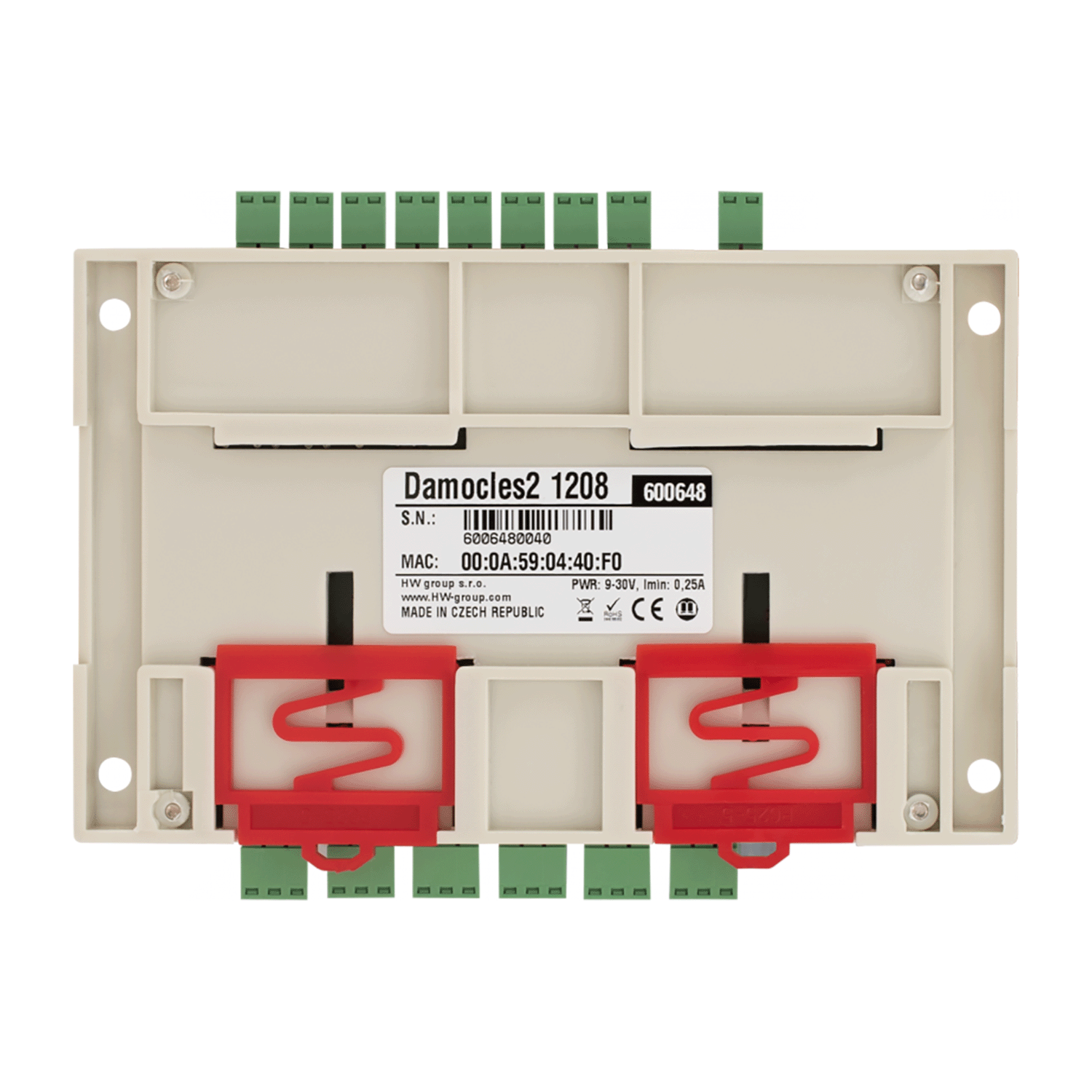

The Damocles2 1208 is a powerful I/O monitoring device that provides 12 dry contact digital inputs with S0 pulse counters and 8 open collector outputs for remote control applications. It enables real-time monitoring and automation of electrical, water, and gas meters, as well as security systems and building management.
Configuration is done through a built-in web server, and the device supports secure M2M protocols (HTTPS, SNMP v3, MQTT, and Modbus/TCP) for seamless integration with SCADA, IoT, and cloud-based monitoring platforms.
Input state changes can trigger alerts via email, SNMP Traps, or SMS (via SMS-GW), and the device can also activate remote relays on another Damocles2 or Poseidon2 unit.
Damocles2 1208 integrates with SensDesk Technology-based portals, allowing remote device management, logging, and advanced alarm automation.
Features
- 12 digital dry contact inputs with S0 pulse counters
- 8 open collector outputs for remote switching
- 8 virtual digital outputs for network automation
- Built-in web interface for easy configuration
- SNMP v3, MQTT, Modbus/TCP, and HTTPS support
- Compatible with SensDesk portal for remote monitoring and alerts
- Data logging for up to 250,000 records
- Power supply via 9-30V DC
Specifications
| Feature | Description |
|---|---|
| Digital Inputs | 12 dry contact inputs with S0 pulse counters |
| Open Collector Outputs | 8 outputs (50V, 500mA max) |
| Virtual Outputs | 8 virtual outputs for remote activation |
| Network Connectivity | Ethernet (10/100 Mbit), SNMP, Modbus/TCP, MQTT |
| Alerting Methods | Email, SNMP Traps, SMS (via SMS-GW) |
| Logging Capacity | 250,000 records |
| Power Supply | 9-30V DC |
| Operating Temperature | -30°C to 65°C |
| Storage Temperature | -30°C to 60°C |
| Humidity Range | 5% to 95% RH |
| Dimensions | 141 × 90 × 40 mm |
| Housing & Protection | Plastic, IP40 |
Applications and Usage
- Remote equipment monitoring
- Energy consumption metering (water, gas, electricity)
- Smart building automation
- UPS and power monitoring
- Security and alarm systems
