Description

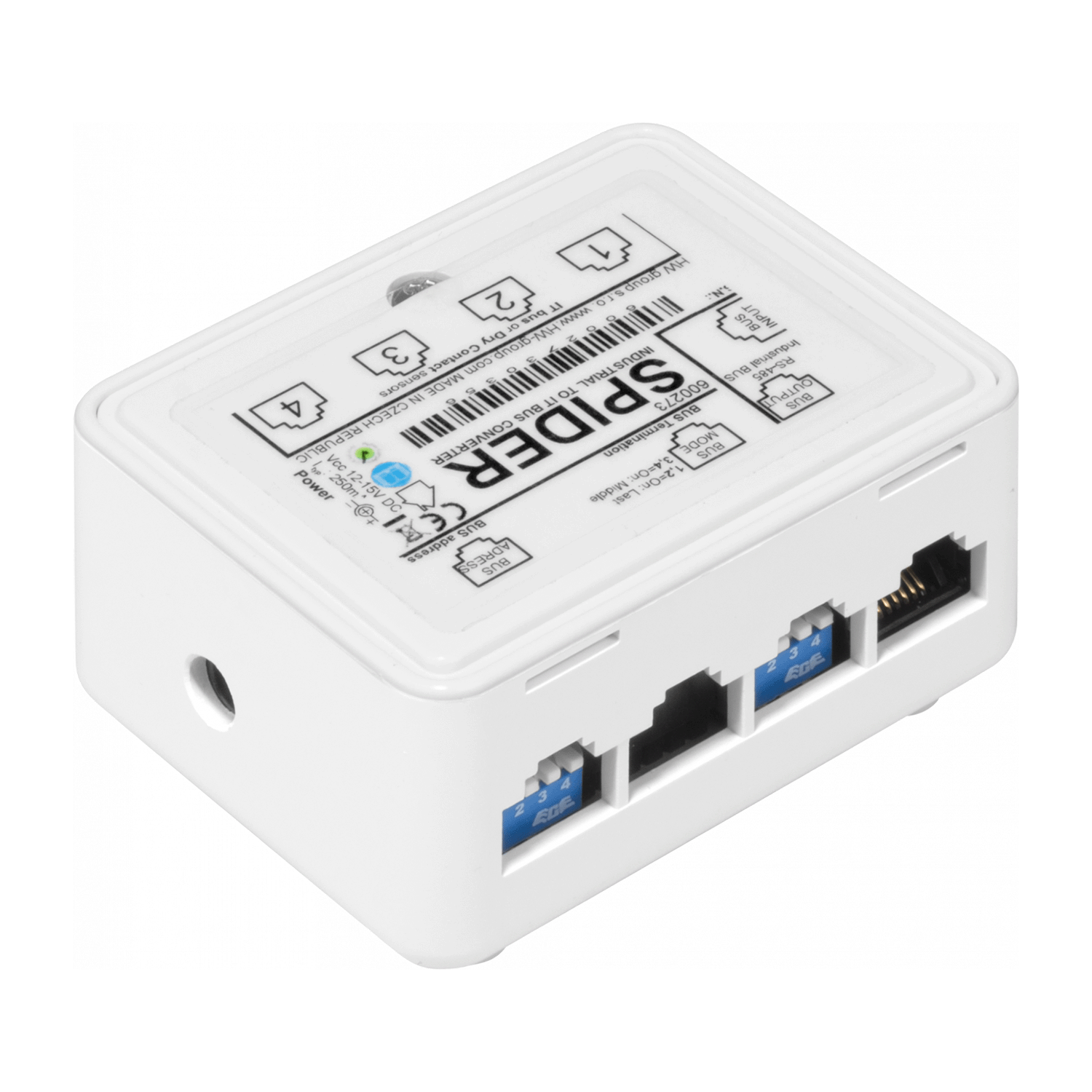

The Spider is designed to expand the number of input connections available to a Poseidon2 4002 by allowing up to 4 dry contacts or RJ11 sensors to be connected via an RS-485 bus. It features two RJ45 connectors for daisy-chaining multiple Spider units together, making it perfect for applications where extensive cabling is required, such as in server rooms, industrial buildings, and other complex environments. The Spider can be powered either directly through the RS-485 bus or by an external 12V power supply (via a barrel connector).
The device includes a DIP switch to easily set the address for each connected unit on the RS-485 bus, making configuration quick and simple. It also features signal indication for when a sensor value is being read or when a dry contact is switched. With the ability to react to extremely short dry contact pulses (as brief as 30 ms), the Spider offers excellent flexibility for various use cases.
Key Features:
- Connects up to 4 dry contacts or RJ11 sensors to the RS-485 bus
- Daisy-chaining support via 2x RJ45 connectors
- Can be powered by the RS-485 bus or an external 12V power supply
- DIP switch for setting the sensor ID on the RS-485 bus
- Indicates sensor readings and dry contact switches
- Reacts to extremely short pulses (30 ms)
Technical Specifications:
- Power supply: 12V (barrel connector, inner 2.1 mm, outer 5.5 mm)
- Consumption: 250mA
- Operating environment: -30°C to 70°C, 0% RH to 100% RH
- Storage environment: -30°C to 60°C, 5% RH to 95% RH
- Dimensions: 71 x 55 x 37 mm (WxHxD)
- Weight: 63g
- Warranty: 24 months
Applications:
- Enlarging inputs for HW devices
- Temperature monitoring in supermarket freezers, with RS-485 bus running behind freezers
- Server rooms, industrial buildings, and other settings requiring complex cabling
The Spider is the ideal solution for increasing the number of dry contact inputs in distributed monitoring setups, providing easy expansion and integration with HW-g systems.
