Description

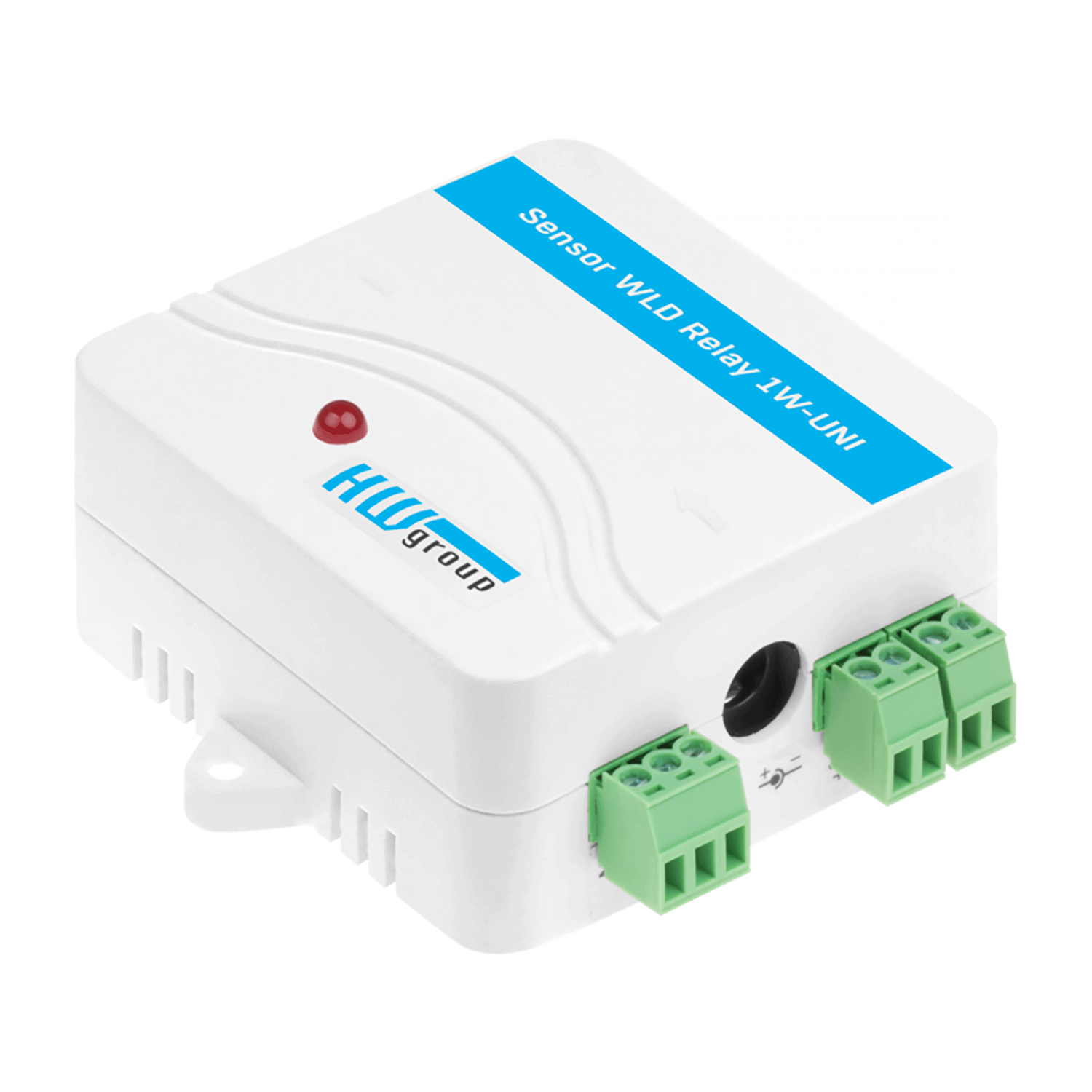

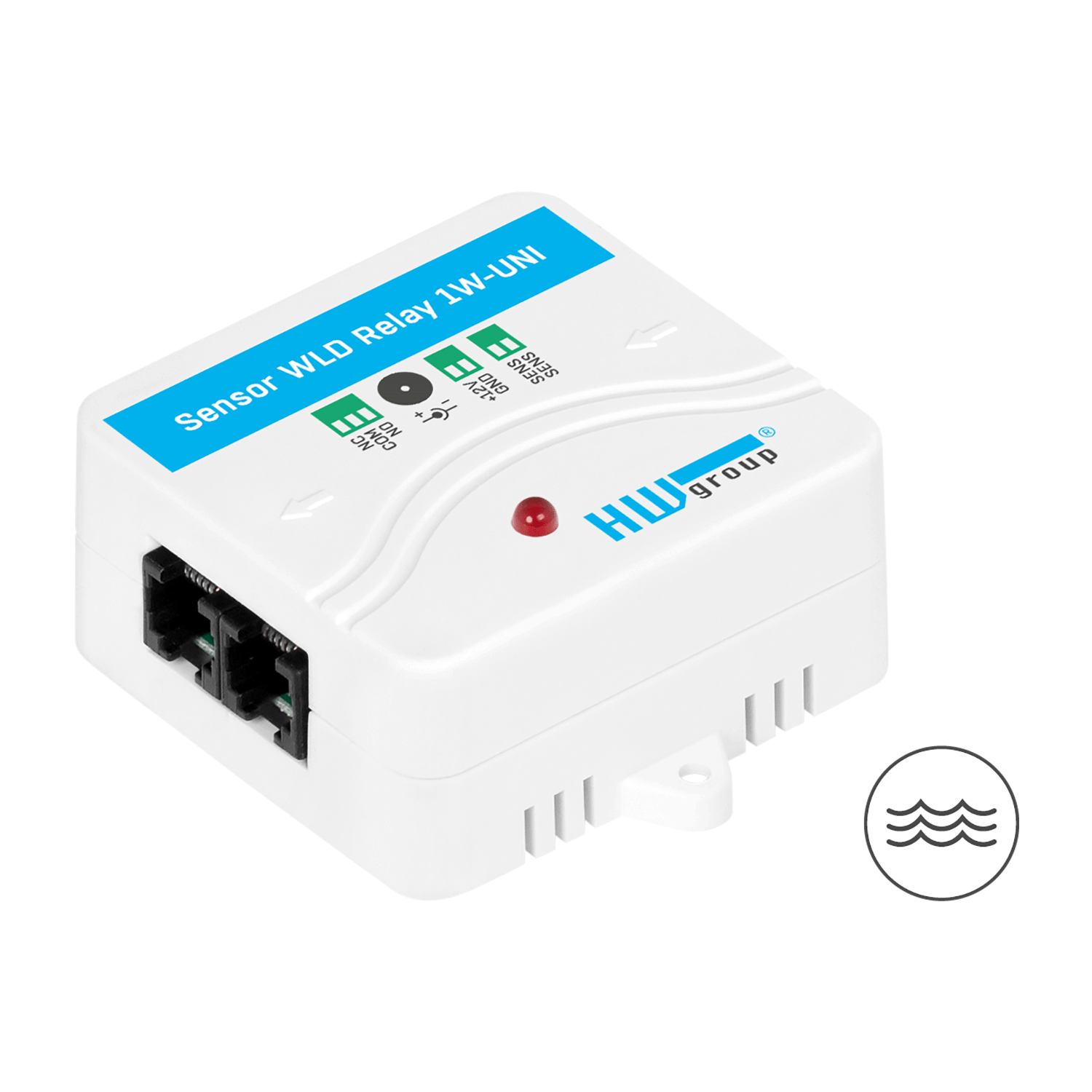

The WLD Relay 1W-UNI is a highly reliable water leak detector, designed for data centres, industrial sites, and security systems. It features dual output options: a relay output for external alarms and an RJ11 (1W-UNI) output for integration with HW group monitoring devices. The WLD sensing cable detects leaks along its entire length, ensuring early detection of even the smallest liquid presence.
Features
- Dual Output Options: Supports both relay (NO/NC) and RJ11 (1W-UNI) connectivity
- WLD Sensing Cable Compatibility: Detects water anywhere along up to 185m of cable
- Early Leak Detection: Responds to even a few drops of water, ethylene glycol, or other conductive liquids
- Standalone or Integrated Use: Functions independently with a 12V power supply or as a 1W-UNI sensor for HW group devices
- Reliable & Reusable: WLD sensing cable is re-usable after drying and cleaning
- No Bend/Twist/Grip Limits: Ensures long-term stability without damage from bending, twisting, or gripping
- Compatible with HWg Monitoring Ecosystem: Provides alerts, reports, remote monitoring, and API integration
Technical Specifications
Specification | Details |
|---|---|
| Water Detection Technology | Resistor |
| Relay Output | NO/NC (50V, 1000mA) |
| Cable Length Options | 3m (default), expandable up to 185m |
| Number of WLD Zones | 1 |
| Power Supply (Relay Mode) | 9-15V DC (Jack or Terminal Block), 20mA |
| Power Supply (1W-UNI Mode) | 5V via RJ11, 40mA |
| Operating Environment | -30°C to 85°C / 0–100% RH |
| Storage Environment | -30°C to 60°C / 5–95% RH |
| Dimensions | 79 x 68 x 34 mm, 122g |
| Installation Options | Table / Wall-mounted |
| Protection Rating | IP33 |
| Connector Types | RJ11, Terminal Block |
| Warranty | 24 months |
Applications and Usage
- Data Centres & Server Rooms – Early leak detection protects critical IT infrastructure
- Security Systems – Integrates with alarm systems for automatic alerts
- Raised Floor Water Detection – Monitors underfloor cabling and equipment
- Pipe Leak Monitoring – Detects leaks in HVAC and plumbing systems
- Roof & Drip Tray Monitoring – Prevents flooding from roof leaks or AC units
Why Choose Sensor WLD Relay 1W-UNI?
The Sensor WLD Relay 1W-UNI is a versatile, high-precision water leak detector with multiple output options for standalone or integrated use. With early warning capabilities, long-term stability, and HW group compatibility, it is the ideal solution for protecting IT and industrial environments from costly water damage.
