Description

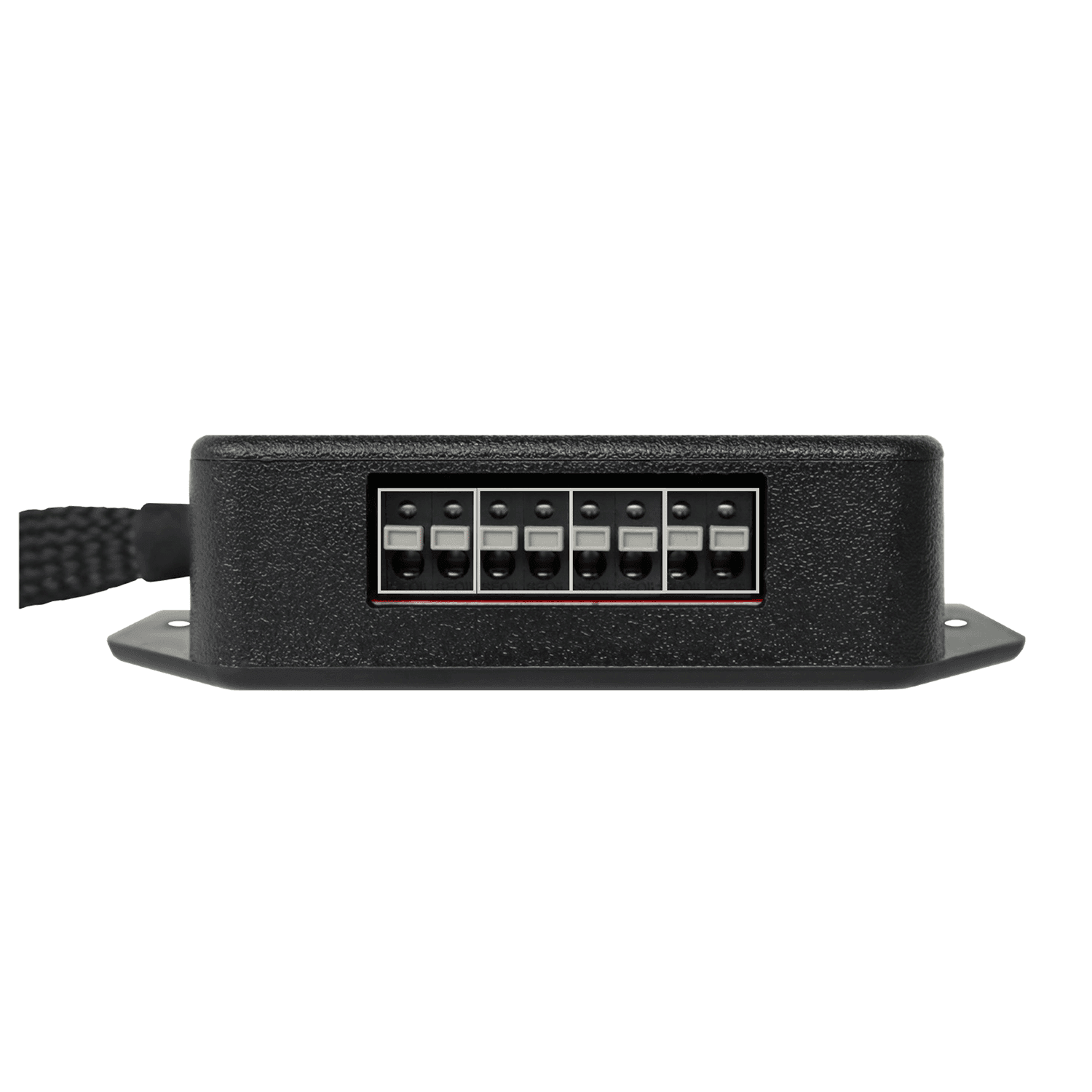

The Avtech Relay Switch Sensor allows low voltage devices to be turned on/off in response to a sensor or input going in or out of an alarm condition. The Relay Switch Sensor supports up to 4 separate devices with LED status lights. Each relay supports a load up to 0.3A at 125VAC or 1A at 24VDC.
The 4 outputs on the Relay Switch Sensor can be individually controlled and activated directly from the Room Alert Web Interface or in response to an alarm condition.
This is a ‘Plug & Play’ Relay that connects directly into the Light Tower Connection Port on any Room Alert 32S, 12S, 3S, 32E, 12E or 3E Device. Switch cable is provided to connect the relay outputs to the desired device such as a building alarm panel or other notification system to automate advanced alerting and response to static building alarms that do not notify staff. Users can also connect it to a generator, back up HVAC unit, fan or water pump to turn it on/off in response to an alert condition. Cable distance can be extended from the standard 7.5 m to approximately 275m by using standard speaker wire, twisted pair or any reliable low voltage 2-wire cable.
