Description

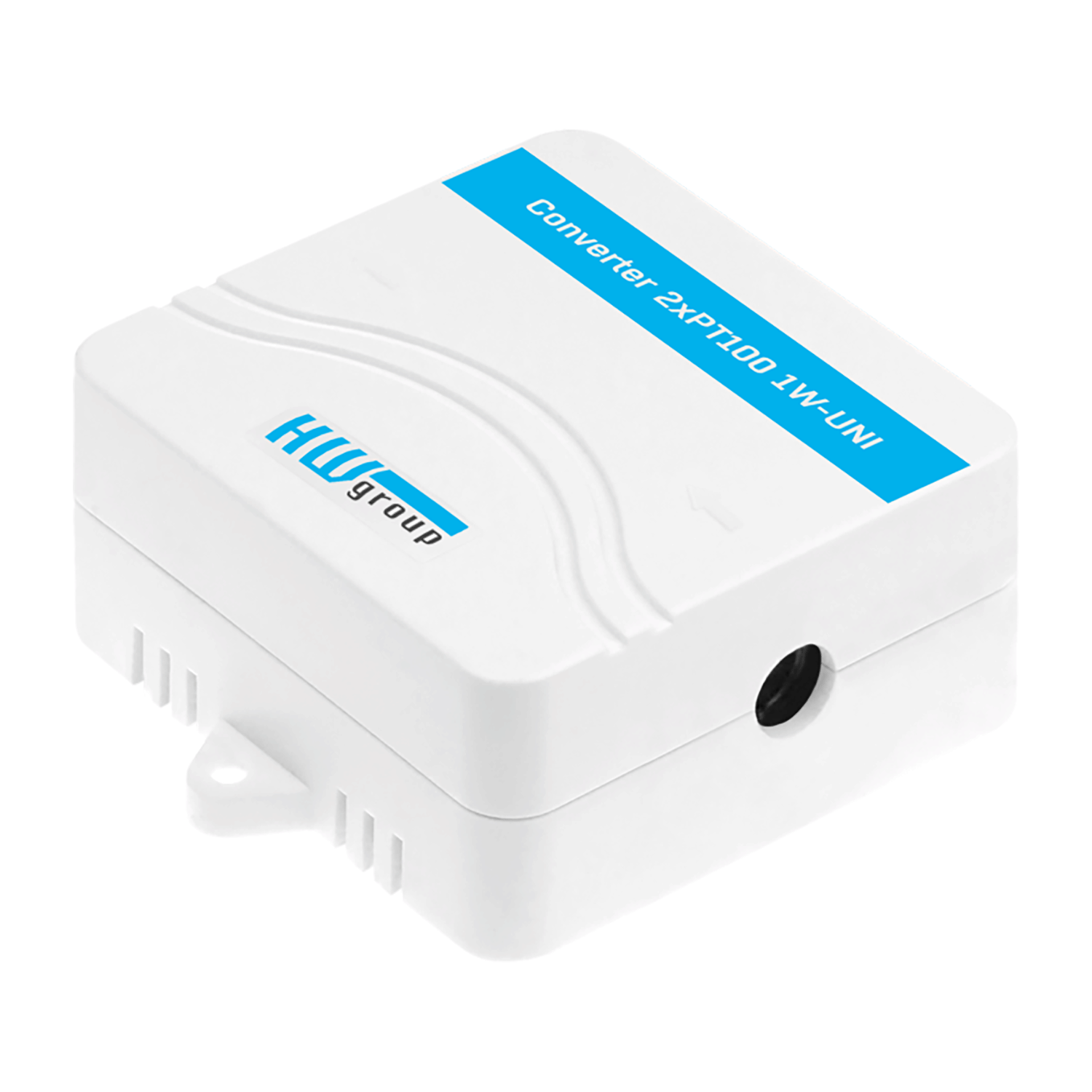

The Converter 2xPt100 1W-UNI enables the connection of one or two Pt100 or Pt1000 platinum temperature sensors to the 1-Wire UNI bus. Designed for use with Poseidon2 and Ares units, it allows remote monitoring of extreme temperatures via LAN or GSM. The converter supports 2, 3, or 4-wire probe connections and provides high measurement accuracy with auto-range detection.
This converter is ideal for measuring temperatures in furnaces, refrigeration systems, engines, and pharmaceutical or food storage facilities. It supports daisy-chaining with other 1-Wire UNI sensors, with a maximum of two converters per active RJ11 port.
Features
- Input: 2x Pt100 or Pt1000 temperature probes
- Probe connection: Supports 2, 3, or 4-wire configurations
- Electrical isolation: No
- Calibration: 8-point calibration for high accuracy

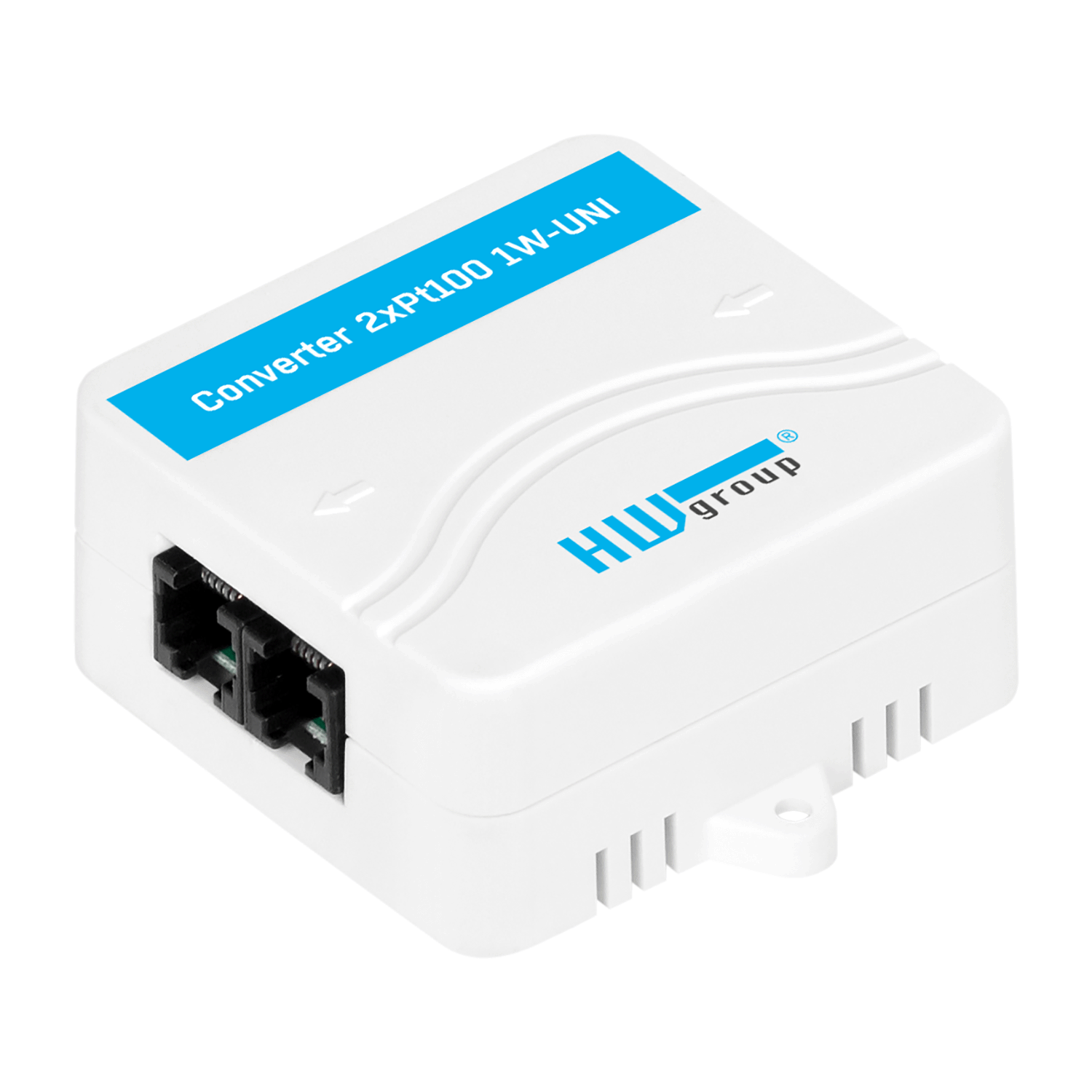

- Interface: 1-Wire UNI with 2x RJ11 connectors for daisy-chaining
- Power supply: Bus-powered (1-Wire UNI) – max. 2 sensors per active RJ11 port
- Compatibility: Works with Poseidon2 and Ares monitoring devices
Applications & Usage
Designed for precise temperature monitoring in:
- Industrial systems and extreme temperature environments
- Cooling plants with fixed temperature monitoring
- Large-scale temperature measurement networks
- HVAC systems in smart buildings
- Food and pharmaceutical storage monitoring
Technical Information
- Measurement range: -200°C to +850°C
- Accuracy:
- ±0.3°C from -200°C to +650°C
- ±0.6°C from -200°C to +850°C
- Resolution: 0.10°C
- Technology: Pt100/Pt1000
- Power supply: 5V (via RJ11 from 1-Wire)
- Consumption: 20mA

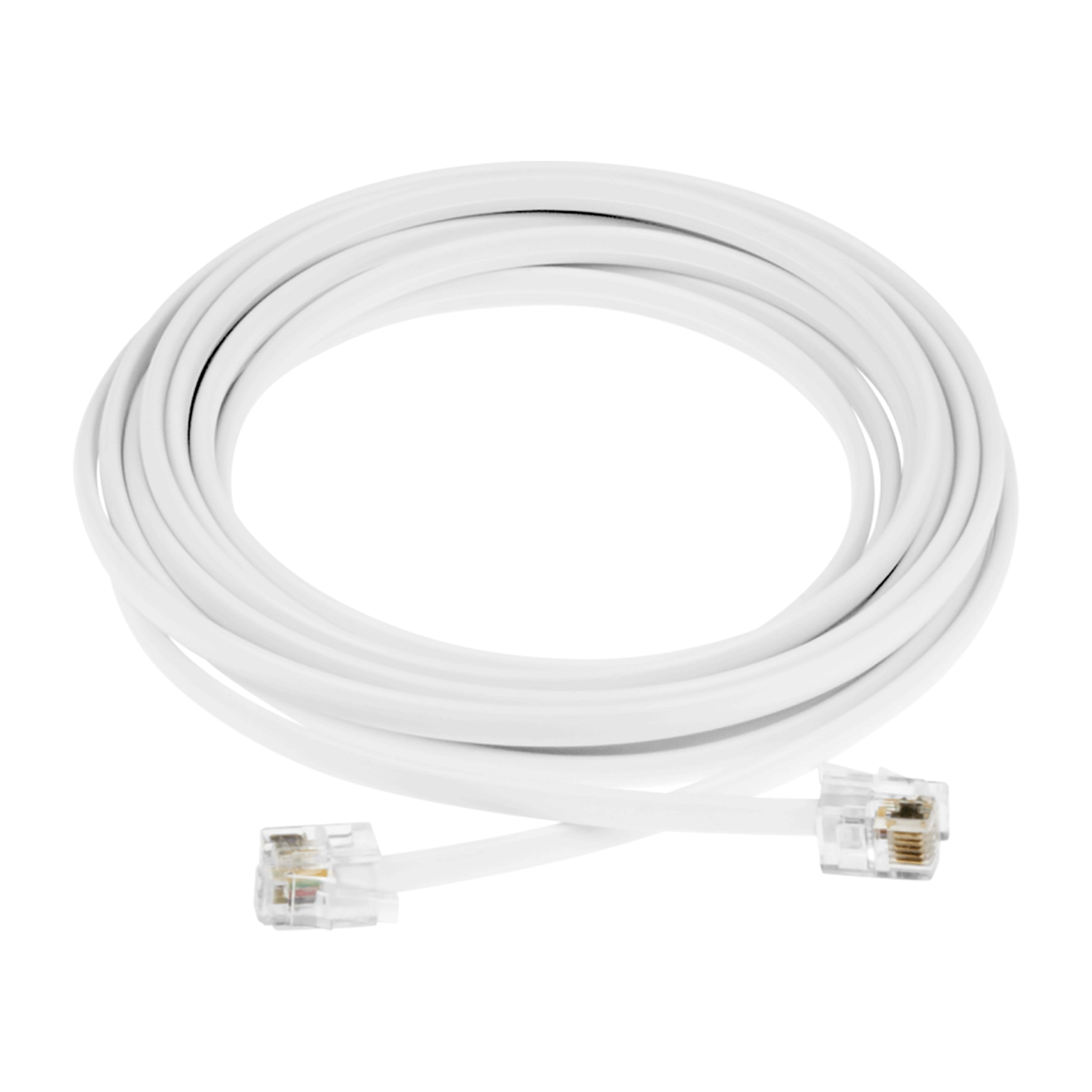

- Cable length: 3m
- Connectors: RJ11
- Operating environment: -30°C to 85°C / 0%RH to 100%RH
- Storage environment: -30°C to 60°C / 5%RH to 95%RH
- Dimensions: 79 x 68 x 30 mm / 114g
- Warranty: 24 months
The Converter 2xPt100 1W-UNI is a reliable solution for integrating high-accuracy temperature probes into Poseidon2 and Ares monitoring systems for industrial and commercial applications.
