Description

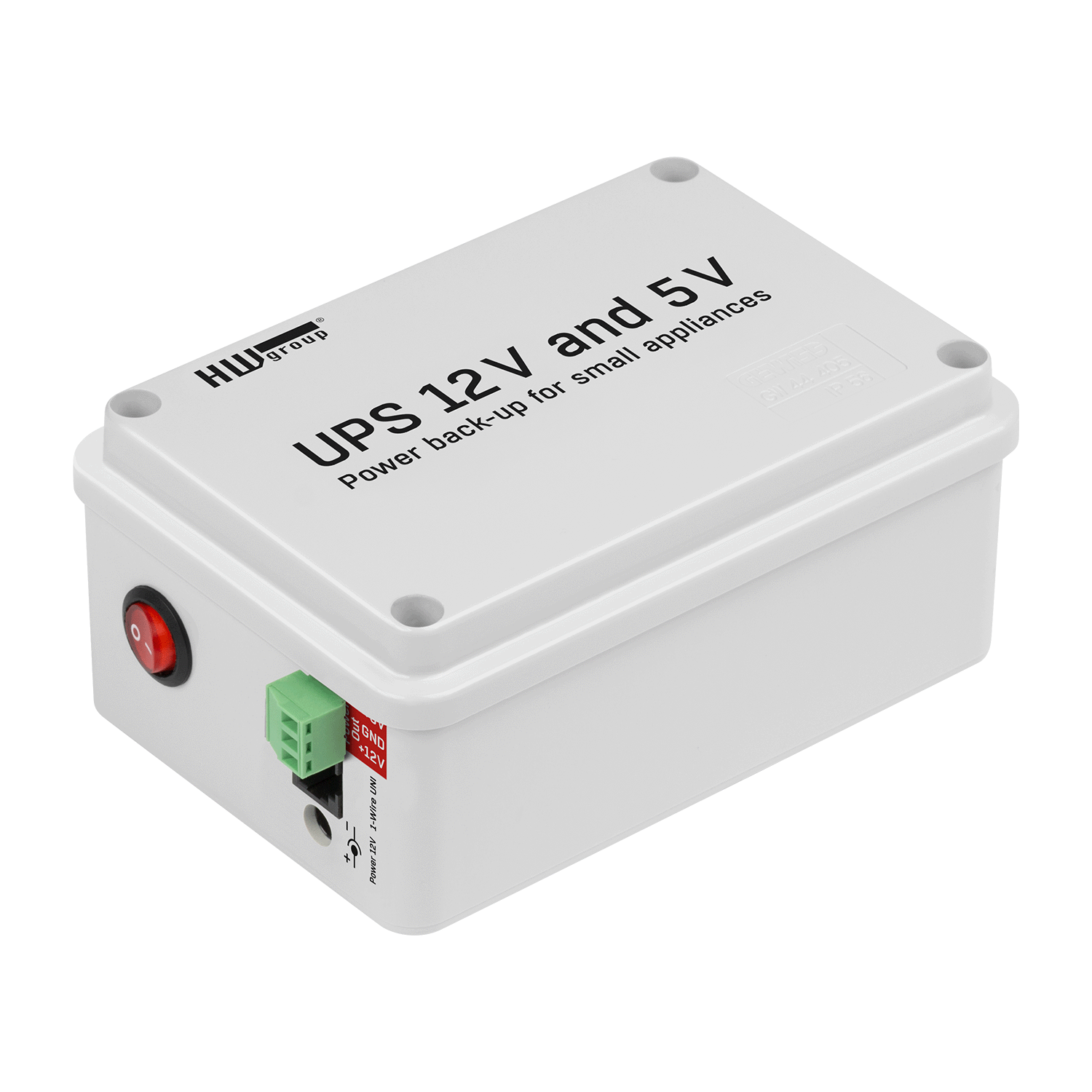

The UPS 12V and 5V ensures continuous operation of small monitoring, PBX, or control systems that rely on 12V and 5V power adaptors. Unlike traditional 230V UPS units, this device provides a compact and efficient solution for low-power electronics. When the external power source fails, the internal 1.3Ah battery takes over, supplying power while simultaneously notifying connected HW group devices via 1-Wire UNI.
Key Features:
- Dual output: Provides 12V (1.5A) and 5V (0.5A) power simultaneously
- 1-Wire UNI interface: Sends real-time UPS status and power outage alerts to compatible HW group monitoring devices
- Stable power output: Ensures smooth operation during power fluctuations or outages
- Compact and efficient design: Avoids the need for large 230V UPS installations
- Simple installation: Connects via standard 12V adapter and pin connector for easy setup
Technical Specifications:
- Input voltage: 12V / 1.5A
- Output voltage: 12V and 5V
- Battery capacity: 1.3Ah (100% at 25°C, 85% at 0°C, 102% at 40°C)
- Dimensions: 135 × 90 × 60 mm
- Weight: 750g
Applications:
- IT & Data Centres – Backup power for monitoring systems and PBX devices
- Industrial Automation – Ensures continuous operation of controllers and sensors
- Smart Home & Security Systems – Keeps surveillance and IoT devices running during outages
This UPS 12V and 5V is a cost-effective, reliable, and easy-to-install backup solution for small 12V and 5V-powered devices.
