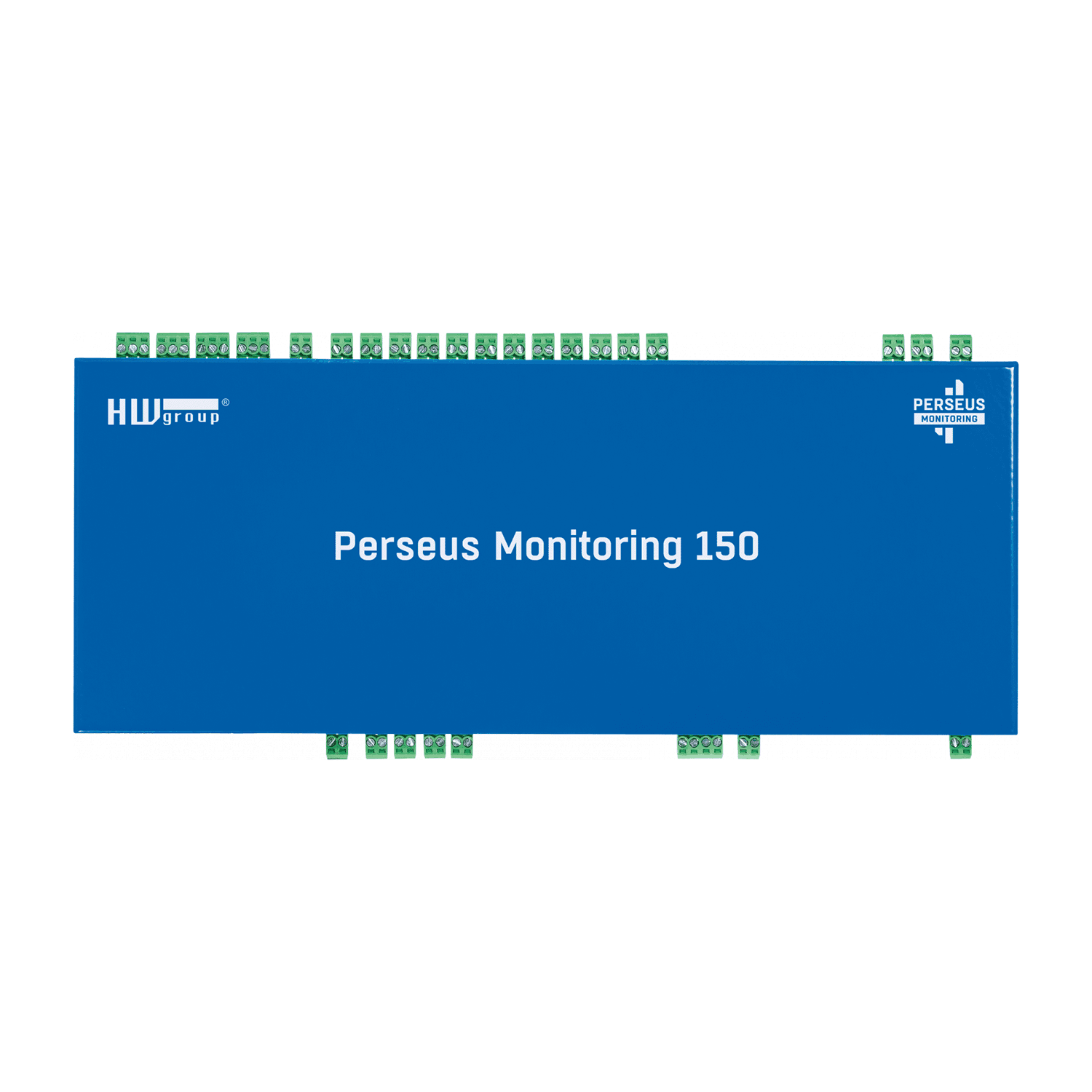

Perseus Monitoring 150

Perseus Monitoring 150 is a complex 1U solution for a 19″ rack monitoring system (data centers, AV installations). Connect external physical sensors (°C, %RH, A, V), Dry Contact detectors, or a WLD (Water Leak Detection) sensing cable. Third-party meters (sensors) can also be connected via LAN or Modbus/RTU.

Data Integration & Alerts

Perseus 150 combines data from external physical sensors and detectors with information from other HWg devices connected via LAN. Local conditions, Lua scripting, a calendar, or a periodic scheduler help analyze the measured data.

Email or SNMP Trap alerts can be sent directly from the Perseus device. Measured values are accessible via Open API (XML, Modbus-TCP, MQTT). Perseus Monitoring 150 can also be integrated with the SensDesk Technology Portal for advanced monitoring and reporting.

Meters Open API

A unique feature of the Perseus series is the Meters Open API. This allows Perseus to read sensor values over LAN from other devices (e.g., STE2 R2) and use this data for analysis or alerting.

Rack-Mounted Monitoring

Perseus Monitoring 150 is a 19″ rack-mount device designed for monitoring a data center cabinet or an entire server room. It supports up to 100 external meters (sensors) with 1000 values (variables). The 1U unit includes:

• 8 x RJ11 ports for external 1W-UNI sensors
• 16 x DI ports (dry contacts)
• 1 x WLD zone input for water leak detection
• 4 x relay outputs
• Power options: 12V, -48V, or PoE

Modbus-RTU & RS-485 Integration

With the RS-485 physical interface and Modbus-RTU Meters Open API, Perseus 150 can read data from third-party electricity meters, UPS systems, or air conditioning units.

Alerting & Automation

Perseus 150 includes a WLD zone input and four relay outputs, which can be controlled based on sensor values. This allows automation for air conditioning, ventilation, or automatic door control.

Typical Applications

• Data center and rack monitoring
• Remote technical room monitoring
• Telecommunication installations
• Industrial automation and infrastructure monitoring

Alerting Options

Perseus 150 enables real-time alerts for remote server room monitoring. Alerts can range from simple high-temperature notifications to complex conditions, such as multiple sensors exceeding limits or becoming inaccessible.

For advanced alerting, an external SMS gateway or the SensDesk.com portal can be used to send SMS or call alerts to predefined contacts.

Portal & Remote Management

Using the SensDesk Technology Portal, users can access:

• Email alerts for long-term reliability
• Device disconnection (“Device Invalid”) alerts
• Short history graphs
• Alarm escalation (email-based)
• Remote relay control
• Central alert management

Paid Portal Features

• Email, SMS, and voice call alerts
• Multi-graph history for several years
• SNMP or XML API for user accounts
• PDF reporting
• Multi-user account support

Mobile App: HWg Monitor

• Data input: LAN devices or Portal user account
• Available for Android and iOS
• All sensor values displayed on one screen
• Can be used as a wall-mounted display

Technical Specifications

• Ethernet: RJ45 (100BASE-T)
• Built-in Web Server
• Sensors: 8x RJ11 ports, supports 1-Wire / 1-Wire UNI sensors
• RS-485 (Modbus-RTU): 1x terminal block with 12V
• WLD: 1 zone for external Water Leak Detection sensing cable
• Digital Outputs (DO): 4x relay outputs
• Digital Inputs (DI): 16x dry contact inputs
• Power Options:
  • 9-30V DC (12V, 1.5A)
  • PoE (Power Over Ethernet) supported
  • Telco standard -48V DC
• Operating Temperature: –30°C to +85°C (–22°F to +185°F)
• Dimensions: Metal case, 1U / 19″ rack, 35 x 111 x 290 mm
• Warranty: 24 months

Security & Open API

• SNMP Trap, email, SMS/calls with external SMS GW
• Open API: SNMP, XML, Modbus/TCP, MQTT
• Supports IPv6, SNMP Traps, and SNMP v3
• Security features: RADIUS – IEEE 802.1X, Admin and User accounts, HTTPS (customer certificate)

HW Group Cloud Portals

Free HWg-cloud.com portal service:

• Send email alerts from the portal (e.g., for a missing sensor) with long-term reliability.
• Alerts for disconnected or invalid devices are available via email.
• View a single-value graph with short history.
• Alarm escalation via email supported.
• Remote relay output switching based on sensor data.
• Centralised alert overview and management.
• Free service provided by HW Group.

Paid portal service:

• Includes all features of HWg-cloud.com.
• Alerts via email, SMS, and voice calls.
• Virtual sensors in the portal (e.g., averaging multiple sensors).
• Multi-graph support with several years of historical data.
• User account API available via SNMP or XML.
• Automated reports in PDF format.
• Multi-user account support.
• SensDesk.com (SaaS service) is available, or you can use any other portal provider.
• SensDesk Portal On-Premise – run your own portal on your server.
